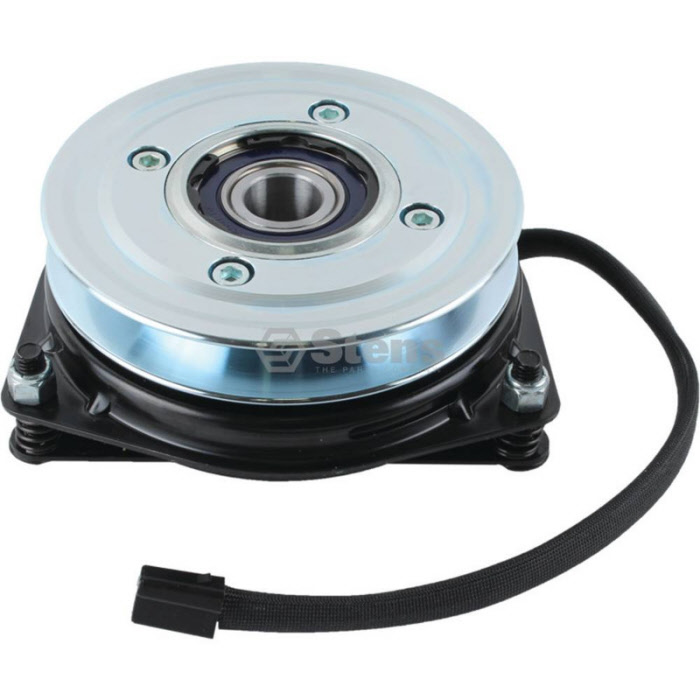

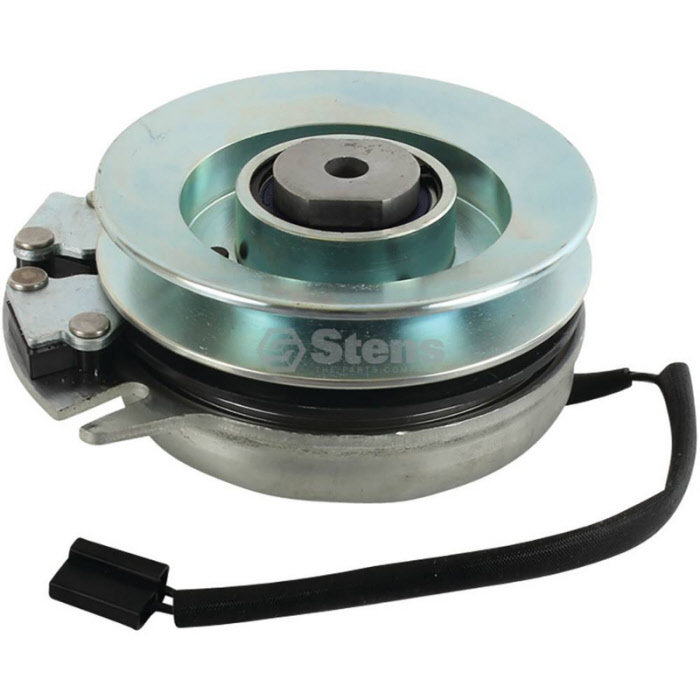

Xtreme PTO Clutch 5217-6

Add to cart
STEX0600
DESCRIPTION
Xtreme Electric PTO Clutch
Xtreme X0003
REPLACES OEM:
Ariens: 03643100
AYP: 160889, 532160889, 53740
Bolens: 1772388, 717-1459, 917-1459, GW-1772388
Craftsman: 03643100, 160889, 1772388, 532160889, 53740, 688EC, 7053740, 7053740S, 7053740SM, 717-1459, 917-1459, GW-1772388
Cub Cadet: 1772388, 717-1459, 917-1459, GW-1772388
Dixon: 160889, 532160889
Electrolux: 160889, 532160889
Exmark: 104-3334
Gravely: 03643100
Huskee: 1772388, 717-1459, 917-1459, GW-1772388
Husqvarna: 160889, 532160889
John Deere: AM119683
Jonsered: 160889, 532160889
Kees: 160889
Massey Ferguson: 160889, 1772388, 532160889, 7053740, 717-1459, 917-1459
McCulloch: 160889, 1772388, 532160889, 7053740, 717-1459, 917-1459
MTD: 1772388, 717-1459, 917-1459, GW-1772388
Poulan: 160889, 532160889
Roper: 160889, 532160889
Snapper: 53740, 7053740, 7053740S, 7053740SM
Snapper Pro: 7053740
Swisher: 688EC
Toro: 104-3334
Troy-Bilt: 1772388, 717-1459, 917-1459, GW-1772388
Warner: 5217-35, 5217-6, 5217-7, 5217-9
White: 1772388, 717-1459, 917-1459, GW-1772388
Woods: 03643100
Xtreme: X0003
Yazoo: 160889, 532160889
FITS MODELS:
Ariens: EZR, LT and YT series; Mini Zoom, Sierra, Sport Zoom and Zoom series
Exmark: Quest, 42" deck, Serial No. 790,000 and higher
Gravely: EZR, LT and YT series; Mini Zoom, Sierra, Sport Zoom and Zoom series
Husqvarna: LTH15, LTH130-LTH160, YTH1542A, YTH1542B, YTH1542D, YTH1542E, YTH1746A, YTH1746B, YTHK1542A, YTHK1542B and YTHK1746B
John Deere: STX38 and STX46, Serial No. 270,000 and lower, black deck
Snapper: LT145H, hydro series C, LT160H, hydro series C. D, E, F, G, H, LT180H, hydro series D, F, G, H, I, Yard Cruiser series 0, 1 and 2, YT Yard Cruiser, series 1 and 2, 33" and 38" deck
Toro: DH-150, DH-170, DH-190, DH-200, DH-210, DH-220, RZT480H, Serial No. 280000001-290999999, Timecutter 14-38Z, 16-38Z, 16-42Z, Z4200, Serial No. 230000001-2409999999, Timecutter Z420, Serial No. 250000001-270999999, Timecutter Z4220 and Z4202, Serial No. 280000001-2909999999, ZD420 and ZD420T, Serial No. 260000001-311999999
Troy-Bilt: LTX13095, LTX13102, LTX13103, LTX13105, LTX13123 and LTX13104
Woods: R1540

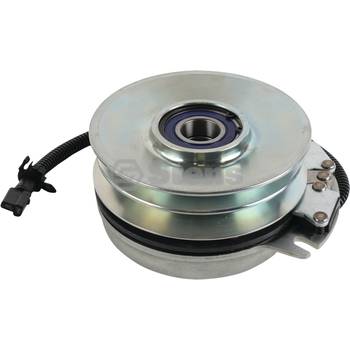

Xtreme PTO Clutch 5217-76

Add to cart
STEX0558

DESCRIPTION
Xtreme PTO Clutch
Warner 5217-76
REPLACES OEM
  • Warner5217-76
SPECS
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • High Torque Cool Coil Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Triple Wire Protection
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Xtreme Torque Series
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter5 3/8"
  • Rotation DirectionCounter Clockwise

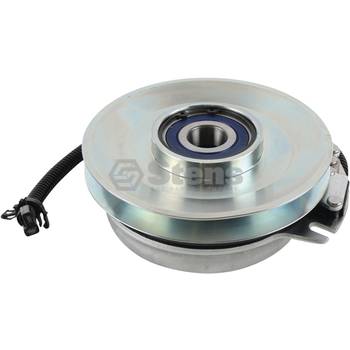

    • Xtreme PTO Clutch 5217-8

    Add to cart
    STEX0007

    DESCRIPTION
    Xtreme PTO Clutch
    John Deere AM121972
    REPLACES OEM
    • John DeereAM121972
    • Warner5217-20, 5217-38, 5217-8
    FITS MODELS
  • John DeereSTX38 and STX46, Serial No. 270,001 and higher, black decks
  • ScottsSTX38 and STX46, Serial No. 270,001 and higher, black decks
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter5 3/8"
  • Rotation DirectionCounter Clockwise

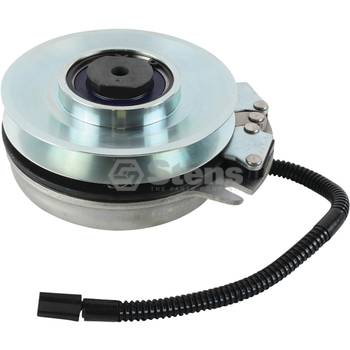

    • Xtreme PTO Clutch 5218-10

    Add to cart
    STEX0041

    DESCRIPTION
    Xtreme PTO Clutch
    Gravely 09225400
    REPLACES OEM
    • Ariens092254, 09225400, 592003, 59200300
    • AYP128711, 539128711
    • Country ClipperE-6247
    • Craftsman128711, 539128711
    • Dixon128711, 539128711, 60473, 60499, 61516
    • Electrolux128711, 539128711
    • Exmark94-6136
    • Gravely092026, 092080, 092254, 09225400, 592003, 59200300
    • Husqvarna128711, 539128711
    • Kees128711, 539128711
    • Massey Ferguson128711, 539128711
    • McCulloch128711, 539128711
    • Poulan128711, 539128711
    • Toro94-6136
    • Warner5218-10, 5218-223, 5218-224
    FITS MODELS
  • AriensHydro Pro 300 and ZTR PM 200
  • Country ClipperSR1010, SR1015 and SR1020 Charger models; Jazee SR205 and SR355, 2007-2008, Jazee SR210 and SR360, 2009, Jazee SR215 and SR365, 2010, Jazee SR220 and SR370, 2011, Boss SR1200, 2006 and Zeton
  • DixonZTR6023, ZTR7025 and ZTR7225
  • GravelyPM and Pro 300 series
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Pulley Diameter5 3/8"
  • Rotation DirectionCounter Clockwise

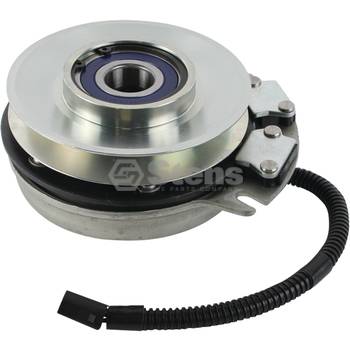

    • Xtreme PTO Clutch 5218-100

    Add to cart
    STEX0257

    DESCRIPTION
    Xtreme PTO Clutch
    Exmark 103-6590
    REPLACES OEM
    • Exmark103-3131, 103-3245, 103-6590
    • Toro103-3131, 103-3245, 103-6590
    • Warner5218-100, 5218-228, 5218-243
    FITS MODELS
  • ExmarkLazer Z AC and AS, Serial No. 440,000 and higher
  • ToroZ Master Z500, Z528 and Z553
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter7 3/16"
  • Rotation DirectionClockwise

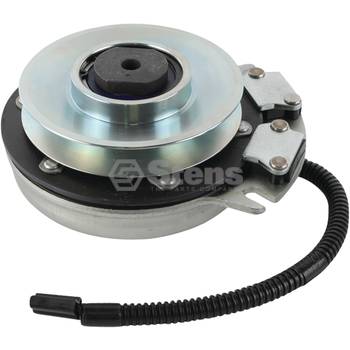

    • Xtreme PTO Clutch 5218-101

    Add to cart
    STEX0460

    DESCRIPTION
    Xtreme PTO Clutch
    Exmark 109-7666
    REPLACES OEM
    • Exmark103-2453, 103-3244, 103-6589, 109-7666
    • Toro103-2453, 103-3244, 103-6589, 109-7666
    • Warner5218-101, 5218-217
    FITS MODELS
  • ExmarkLazer Z XS, Serial No. 440,000 and higher; Lazer Z AS, Serial No. 720,000-789,999; Lazer Z, Kawasaki units, Serial No. 370,000 and higher; and Lazer Z XS, Serial No. 600,000 and higher
  • ToroZ Master Z550, Serial No. 280000001-280999999, Z555, Serial No. 240000001-250999999, Z558, Serial No. 270000001-270999999 and Z587L, Serial No. 240000001-240999999
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Pulley Diameter7 1/8"
  • Rotation DirectionClockwise

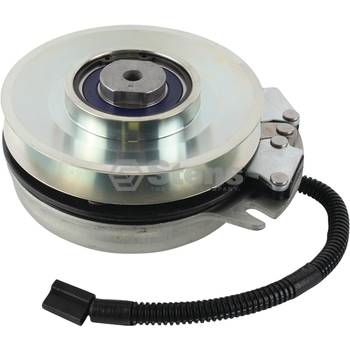

    • Xtreme PTO Clutch 5218-102

    Add to cart
    STEX0276

    DESCRIPTION
    Xtreme PTO Clutch
    Husqvarna 539106880
    REPLACES OEM
    • AYP106880, 539106880
    • Craftsman106880, 539106880
    • Dixon106880, 539106880
    • Electrolux106880, 539106880
    • Husqvarna106880, 539106880
    • Kees106880, 539106880
    • Massey Ferguson106880, 539106880
    • McCulloch106880, 539106880
    • Poulan106880, 539106880
    • Warner5218-102
    FITS MODELS
  • DixonKodiak 52, 2005-2008 and Kodiak 60, 2005-2007
  • HusqvarnaIZ21, IZ21C, IZ4217, IZ4218, IZ4817, IZ4818, IZ4819, IZ4821, IZ5221, IZ5223, IZ6123, IZC5221 and IZC5223
  • KeesZMBI 42180, ZMBI 48180, ZMBI 48181, ZMKH 52230, ZMKH 52231 and ZMKH 52232
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter6 5/16"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5218-107

    Add to cart
    STEX0459

    DESCRIPTION
    Xtreme PTO Clutch
    Exmark 109-9275
    REPLACES OEM
    • Dixie Chopper500012
    • Exmark109-9275
    • Warner5218-107, 5218-140, 5218-210, 5218-253
    FITS MODELS
  • Dixie ChopperRun Behind, Silver Eagle LT and Silver Eagle SE series
  • ExmarkLazer HP 523, Serial No. 720,000 and higher
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Pulley Diameter7 3/16"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5218-159

    Add to cart
    STEX0451

    DESCRIPTION
    Xtreme PTO Clutch
    Dixie Chopper 500056
    REPLACES OEM
    • Dixie Chopper500056
    • Warner5218-145, 5218-254
    FITS MODELS
  • Dixie ChopperClassic and Xcaliber series
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Pulley Diameter7 1/8"
  • Rotation DirectionClockwise

    • Xtreme PTO Clutch 5218-142

    Add to cart
    STEX0219

    DESCRIPTION
    Xtreme PTO Clutch
    Gravely 00462500
    REPLACES OEM
    • Ariens00462500, 462500
    • Craftsman00462500
    • Gravely00462500, 462500
    • Great Dane00462500
    • Warner5218-142
    FITS MODELS
  • AriensPM144Z, PM272H, PM252H, PM260H and PM260Z
  • GravelyPM and Pro Master series
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Pulley Diameter6 5/16"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5218-161

    Add to cart
    STEX0238

    DESCRIPTION
    Xtreme PTO Clutch
    Exmark 109-6627
    REPLACES OEM
    • Exmark103-0011, 103-0083, 109-6626, 109-6627
    • Toro103-0011, 103-0083, 109-6626, 109-6627
    • Warner5218-161, 5218-206, 5218-313, 5218-82
    FITS MODELS
  • ExmarkFront Runner, air cooled and diesel, Serial No. 600,000 and higher; and Lazer Z XP, Serial No. 260,000-599,999
  • ToroZ590-D, Serial No. 280000000-311999999 and Z597-D, Serial No. 240000000-270999999
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
  • Belt WidthDouble A
  • ID1 1/8"
  • Pulley Diameter6 1/2"
  • Rotation DirectionClockwise

    • Xtreme PTO Clutch 5218-207

    Add to cart
    STEX0239

    DESCRIPTION
    Xtreme PTO Clutch
    Toro 116-1620
    REPLACES OEM
    • Exmark109-9282, 116-1604, 116-1620
    • Toro109-9282, 116-1604, 116-1620
    • Warner5218-207
    FITS MODELS
  • ExmarkLazer Z S, E and X series, Serial No. 312,000 and higher, Next Lazer Z, air cooled, Serial No. 790,000 and higher, Next Lazer Z ASX, Serial No. 850,000 and higher, and Quest SP, Serial No. 850,000 and higher
  • ToroZ Master G3 turbo force, Serial No. 290000001-312999999, 48", 52", 60" and 72" decks
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Pulley Diameter7 3/16"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5218-21

    Add to cart
    STEX0042

    DESCRIPTION
    Xtreme PTO Clutch
    Exmark 103-0662
    REPLACES OEM
    • Exmark103-0500, 103-0661, 103-0662, 1-631644, 1-631731, 1-633098, 631644, 631731, 633098, E631644, E631731, E633098
    • Toro103-0500, 103-0661, 103-0662, 1-631644, 1-631731, 1-633098, 1-641213, 631644, 631731, 633098, E631644, E631731, E633098
    • Warner5218-21, 5218-25, 5218-293, 5218-76, 5218-76C
    FITS MODELS
  • ExmarkLazer Z, Serial No. 789,999 and lower; Turf Tracer Hydro, Serial No. 320,000 and higher; Turf Tracer S, Serial No. 920,000 and higher; and Turf Tracer X, Serial No. 920,000 and higher
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Does NOT replace Ogura clutches
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter6 5/16"
  • Rotation DirectionClockwise

    • Xtreme PTO Clutch 5218-21

    Add to cart
    STEX0037

    DESCRIPTION
    Xtreme PTO Clutch
    Cub Cadet 917-3446
    REPLACES OEM
    • Bolens717-3446, 717-3446P, 917-3446
    • Craftsman717-3446, 717-3446P, 917-3446
    • Cub Cadet717-3446, 717-3446P, 917-3446
    • Huskee717-3446, 717-3446P, 917-3446
    • John Deere917-3446
    • MTD717-3446, 717-3446P, 917-3446
    • Troy-Bilt717-3446, 717-3446P, 917-3446
    • Warner5218-29
    FITS MODELS
  • Cub Cadet2160, 2164, 2165, GT2521 and LT2180
  • John Deere2160, 2164, 2165, 50567X8, GT2521 and LT2180
  • MTD2160, 2164 and 2165
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter6"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5218-219

    Add to cart
    STEX0243
    DESCRIPTION
    Xtreme PTO Clutch
    Hustler 781039K
    REPLACES OEM
    • Big Dog781039, 781039K
    • Hustler781039, 781039K, 787408
    FITS MODELS
  • HustlerMini Z, Standard Z and Super Z with 52", 60" and 72"
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 4 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact Resistant Wire Harness - with Xtreme's "Integrated Diode"
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Pulley Diameter6 1/4"
  • Rotation DirectionClockwise
